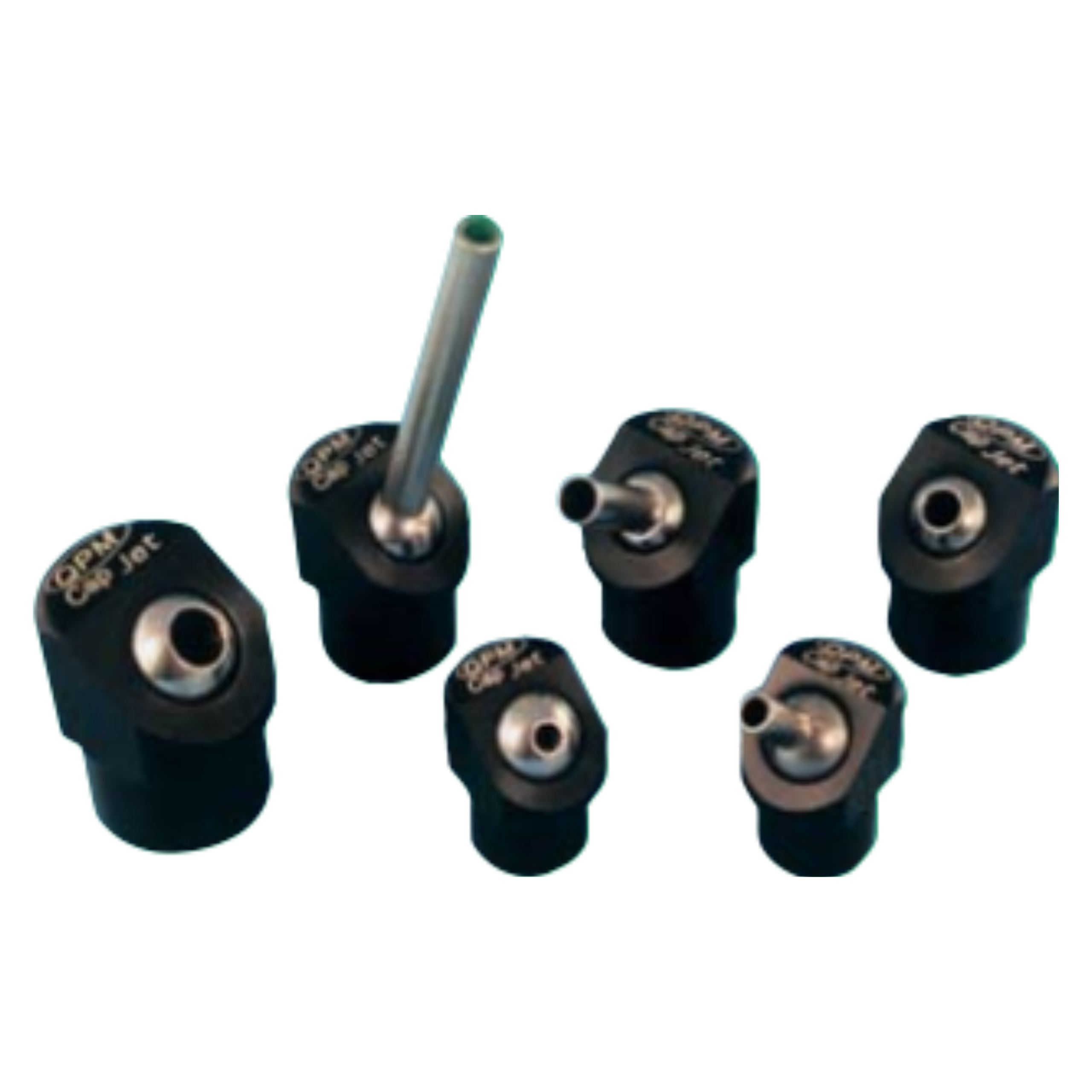

Cap Jet Coolant Nozzles
- Screws onto any NPT or BSPT pipe nipple just like a pipe cap.
- Ideal for high production, dedicated machine tools with rigid coolant piping.
- Same great features as the Turret Jet, except a female pipe thread.
- Maximum Pressure: 150 psi (10 bar)
Category: Coolant Nozzles

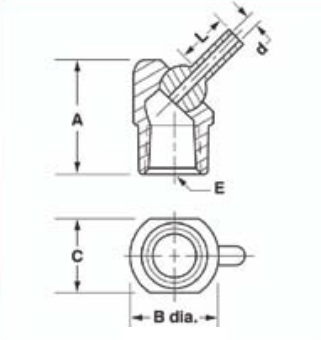

| SKU | Description | Thread Size | Orifice Dia | Extension | A | B | C | Pkg Qty | Quote |
|---|---|---|---|---|---|---|---|---|---|
| CJ07513 | Cap Jet Coolant Nozzles Pack | 1/8 NPT/BSPT | .11 | .50" | .82" | .63" | .50" | 5 | |
| CJ07516 | Cap Jet Coolant Nozzles Pack | 1/8 NPT/BSPT | .16 | 0 | .82" | .63" | .50" | 5 | |
| CJ07518 | Cap Jet Coolant Nozzles Pack | 1/8 NPT/BSPT | .16 | .50" | .82" | .63" | .50" | 5 | |
| CJ07542 | Cap Jet Coolant Nozzles Pack | 3/8 NPT/BSPT | .16 | 1.25" | 1.13" | .88" | .75" | 5 |
Additional Information
Please contact sales@globalcnc.com for more sizes.
